gelid – gelid HP

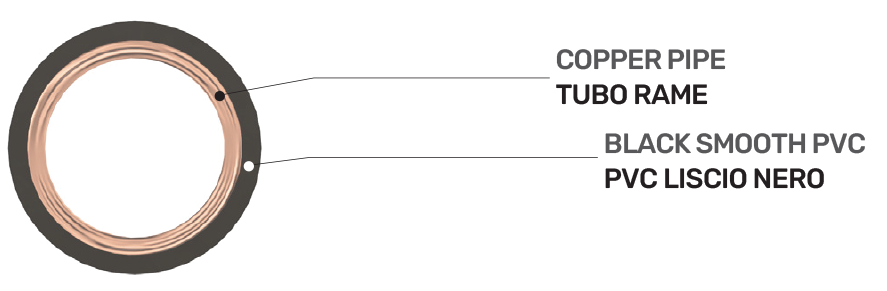

COPYING PIPE WITH SMOOTH PVC FOR AUTOMOTIVE AND INDUSTRIAL SYSTEMS IN 50 m ROLLS OR IN ROLLSTO BE INSTALLED IN AFTERMARKET KITS
Medium plasticized PVC sheath, black colour, non-toxic,
odourless, free from chlorofluorocarbons (CFC).
• Density: 1,7 kg/dm3
• Fire reaction: DIN 4102-B2
Specific for automotive gas systems (LPG – CNG) it
complies with the regulation ECE ONU R67-01 and is also
used for:
• Chemical and petrochemical systems
• Gas distribution networks
• Liquid fuel distribution networks
• Hydraulic systems
• Compressed air distribution systems
Gelid (GPL – LPG)
| Copper pipe diameter | Copper pipe thickness | Roll lengths | Water content | Burst pressure |
|---|---|---|---|---|
| Inch (mm) | mm | mm | l/m | MPa |
| 6 | 1 | 6 – 50 | 0,013 | 63 |
| 6,35 (1/4”) | 1 | 50 | 0,015 | 60 |
| 8 | 1 | 2 – 50 | 0,028 | 48 |
| 9,52 (3/8”) | 1 | 50 | 0,044 | 40 |
| 10 | 1 | 50 | 0,050 | 38 |
| 12 | 1 | 50 | 0,079 | 32 |
| 14 | 1 | 50 | 0,113 | 27 |
Gelid HP (CNG)
| Copper pipe diameter | Copper pipe thickness | Roll lengths | Water content | Burst pressure |
|---|---|---|---|---|
| Inch (mm) | mm | mm | l/m | MPa |
| 6 | 1 | 6 – 50 | 0,013 | 69 |
| 8 | 1 | 2 – 50 | 0,028 | 52 |
